Electroplated Diamond Screw Tap
Description
Electroplated Diamond Screw Tap
A precision tool designed for threading hard and brittle materials. By electroplating diamond abrasives onto a metal body, the tool achieves a single-layer diamond structure with high exposure, delivering superior cutting performance and durability.
These taps are typically used with CNC machining centers or milling machines to create internal threads in materials such as glass, ceramics, and sapphire.
Unlike conventional taps, diamond screw taps operate through a grinding mechanism, which minimizes cracking and chipping, ensuring clean and precise threads.
Application: Working with CNC machining center or CNC milling machine to make an internal thread on high hardness material such as ceramic, glass and sapphire etc.

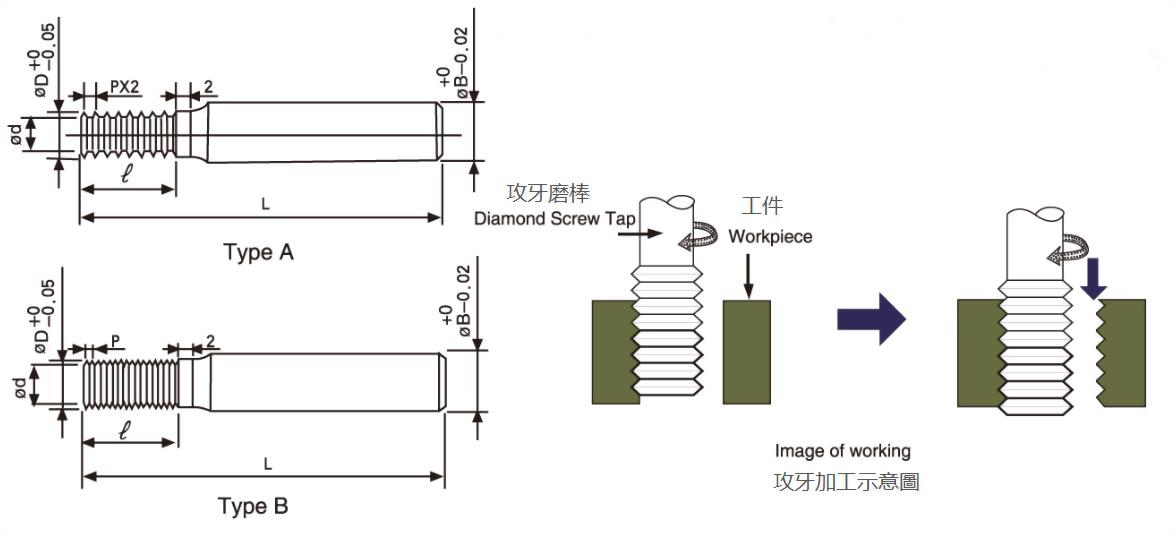

Specifications
Unit: mm
|
Order No. |
O.D |
I.D |
Pitch |
Teeth quantity |
Teeth length |
Type |
Shank |
Overall length |
Grit Size |
|
Ø D |
Ø d |
P |
N |
|
|
ØB |
L |
|
|
|
M2 |
1.6 |
1 |
0.4 |
6 |
7 |
A |
3 |
50 |
#400 |
|
M2.5 |
1.9 |
1.1 |
0.45 |
6 |
8 |
||||
|
M3 |
2.4 |
1.6 |
0.5 |
8 |
10 |
||||
|
M4 |
3.1 |
2 |
0.7 |
12 |
10 |
B |
6 |
80 |
#200 |
|
M5 |
4.0 |
2.6 |
0.8 |
10 |
10 |
||||
|
M6 |
4.7 |
3 |
1 |
10 |
12 |
||||
|
M8 |
6.6 |
4.8 |
1.25 |
10 |
15 |
||||
|
M10 |
8.3 |
6 |
1.5 |
10 |
18 |
||||
|
M12 |
10.0 |
7.2 |
1.75 |
10 |
20 |
||||
|
M14 |
11.8 |
8.6 |
2 |
10 |
22 |
||||
|
M16 |
13.8 |
10.6 |
2 |
10 |
22 |
Features
High precision threading with minimal edge chipping
Ideal for hard and brittle materials
Applications
Ceramic and alumina parts
Sapphire and semiconductor materials
Electronics and 3C industries
Precision engineering applications
These tools are ideal for high-precision internal threading in brittle materials, reducing cracking and improving machining quality.
